HA Series Mid-to-High-Pressure Compressors

The HA Series mid-to-high-pressure air compressors are characterized by their small size, light weight, good balance, and low noise. They are widely used in various industrial applications.

Multiple blocks to meet different needs

   W-max. pressure 350Bar                                             X- max. pressure 420Bar


Various structural forms to meet different customer demands

COMPACT Design

●Frame integrated design, highly integrated,lightweight and compact.

●Fully automatic drain system and drain collection system, clean and environmentally friendly.

●With electrical control system, economical and durable.

●Optional wheel assembly for easy movement.

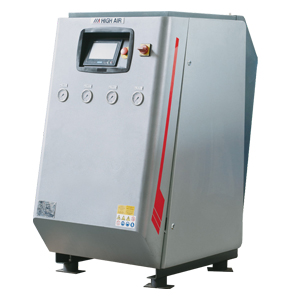

SILENT Design

●Vertical design, small footprint.

●The cabinet with super silent design, low noise.

●Aerodynamic design, efficient cooling channel, reserved air duct interface, can  lead hot air to the outdoor.

●Fully automatic drain system and drain collec-tion system, clean and environmentally friendly.

●Automatic PLC control system with HMI.

●Optional integrated refrigerated dryer.



Model

Pressure  Bar

Flow   m3/minPower   kwDimensions  mmWeight  kg
COMPACT  design
HA0.1-330/ET3300.13706*376*43249
HAO.5-30/ETC300.55.51228*593*714
130
HAO.35-80/ETC50-800.355.5136
HAO.3-250/ETC100-2500.37.5138
HAO.3-350/ETC250-3500.37.5140
HA1-40/ETC401151650*660*950
350
HA0.85-70/ETC50-700.8511345
HA0.65-150/ETC80-1500.6511345
HA0.6-250/ETC150-2500.611345
HA0.6-250/ETC250-4000.615350
SILENT design
HA0.5-30/ESC300.55.51100*720*1365
264
HAO.35-80/ESC50-800.355.5270
HAO.3-250/ESC100-2500.37.5272
HAO.3-350/ESC250-3500.37.5273
HA1-40/ESC40
1151400*850*1660
490
HAD.85-70/ESC40-700.8511485
HAD.65-150/ESC80-1500.8511485
HAO.6-250/ESC150-2500.611485
HAO.6-400/ESC250-4000.615490

  1. If you have any other requirements,Please contact with HIGH AIR.

  2. All parameters are subject to change without prior notice.

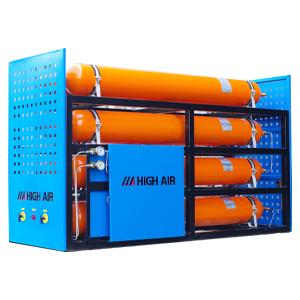

  High Pressure Storage Cylinders                                     High Pressure Distributor

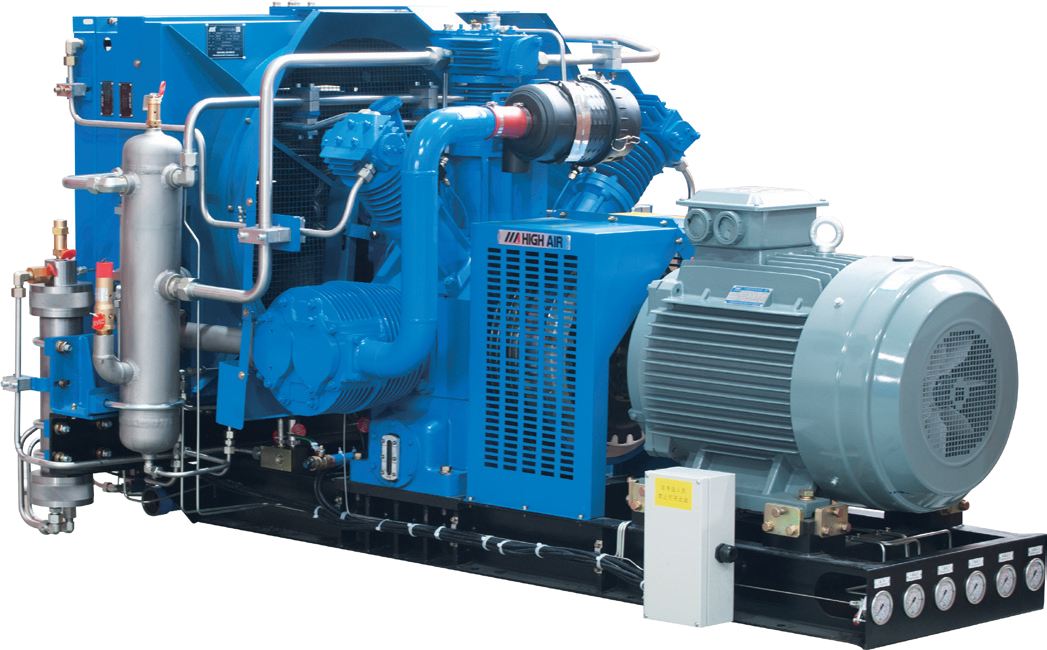

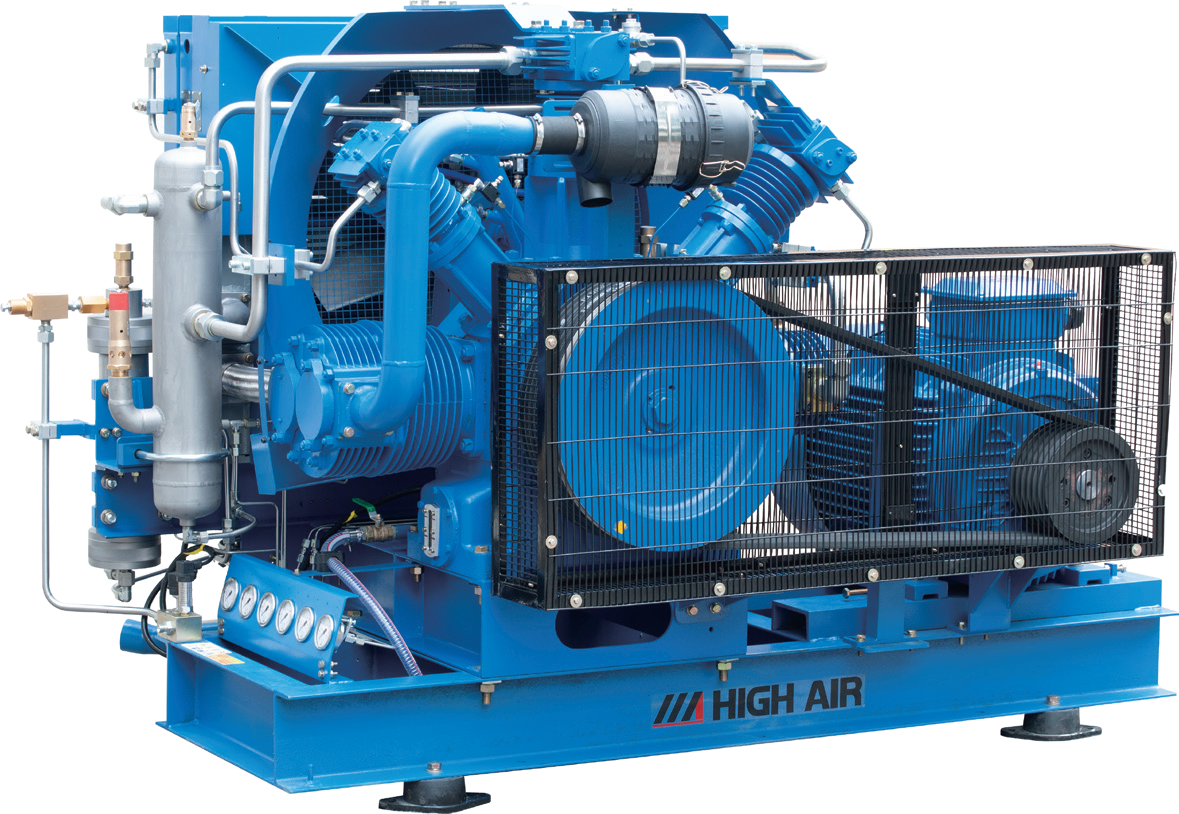

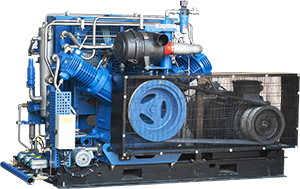

HG Series Mid-to-High-Pressure Compressors

The HG series medium and high pressure air compressors adopt a heavy-duty design, and various models meet diverse application needs.

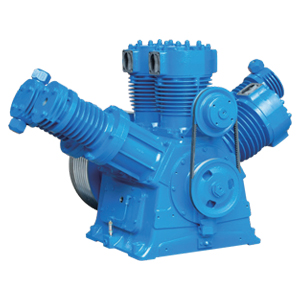

Multiple blocks to meet different needs

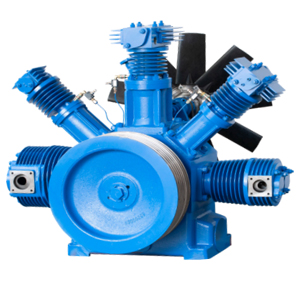

 V-max. pressure 450Bar                                                    W-max. pressure 500Bar


Air-cooled blocks, designed specifically for complex and demanding operating environments. Multi-stage compression reduces the load on each stage, and single-acting, deep-fin cylinders increase the reliability of the unit's operation.

Carefully selected components are suitable for various operating conditions.

The oil pump-driven lubrication system provides perfect lubrication to all moving parts. The lubricating oil monitoring system ensures the reliable operation of the unit. The lubricating oil filtration system precisely filters the lubricating oil, ensuring the safety of the unit.

Deep-fin cylinders and cylinder head cooling fins, along with oversized design coolers, effectively lower the operating temperatures at each stage.

The crankshaft drives the cooling fan to provide forced cooling for the main unit and air-cooled coolers.

The efficient inter-stage cooling system reduces the exhaust temperature at each stage of the unit.

The choice of air-cooled or water-cooled coolers can be tailored to the actual working conditions. Each cooling stage is equipped with a separator and fully automatic drainage system.

High Air offers standard control systems or can customize unique control systems according to customer requirements. Thanks to its reliable design, High Air compressors operate efficiently and stably under continuous or intermittent working conditions.
